From R Shiny to Production: How We Built a Clinical Calculator for a Nature Medicine Paper
I work at the Ghobrial Lab at Dana-Farber Cancer Institute, where I’m building their bioinformatics platform. Part of that work is making research tools accessible — which is how I got the opportunity to build the web app for their latest publication.
A new Nature Medicine paper (10.1038/s41591-026-04304-x) introduces PANGEA-SMM — a dynamic risk calculator for smoldering multiple myeloma (SMM) that tracks longitudinal biomarkers to predict progression without requiring a bone marrow biopsy.
The model is free and live at pangeamodels.org.
Note: PANGEA-SMM is a research tool intended to support clinical decision-making. It is not FDA-approved and should not replace physician judgment or established clinical guidelines.
Here’s how we built the infrastructure behind it, and why we moved away from R Shiny.
The Starting Point: R Shiny
The first version was an R Shiny app. It worked for demos and internal use — but Shiny has real limits when you need something available 24/7 to clinicians worldwide:
- Shiny server concurrency is limited without significant infrastructure
- Session state makes horizontal scaling harder
- Cold starts on free-tier hosting are slow and unreliable
- Bundle deployment and versioning are clunky
We needed something that felt fast, was easy to maintain, and could serve real clinical users reliably.
The Architecture
The redesign splits the app into two services with clear responsibilities:
Frontend: React + TypeScript on Netlify
The UI is a React 19 SPA built with Vite and Tailwind CSS. Netlify handles CI/CD automatically — every push to main deploys. The static site is served via CDN globally, so load times are fast regardless of where the clinician is.
Recharts powers the 5-year progression curves with confidence intervals. Validation happens client-side (TypeScript hooks) before any API call is made.
Backend: R Plumber on GCP
The statistical heavy lifting stays in R — where the Cox proportional hazards models live. R Plumber exposes two REST endpoints:
POST /calculate-score/static— standard risk calculationPOST /calculate-score/dynamic— incorporates patient history for trajectory-aware prediction
The R service runs in Docker on a GCP e2-medium VM (2 vCPU, 4 GB RAM). Nginx sits in front, handling SSL termination, rate limiting (2 req/s for API endpoints), CORS, and security headers.
Let’s Encrypt manages the certificate automatically.

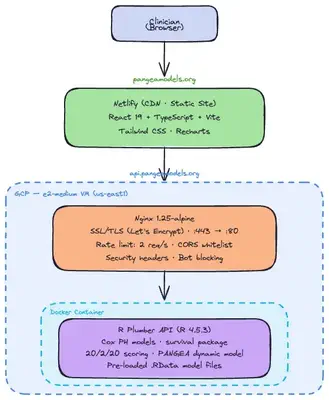

Infrastructure Diagram
Why This Split Works
Keeping R in the backend was the right call. The models are trained and validated in R — reimplementing them in Python or JavaScript would introduce risk and require revalidation. R Plumber makes it straightforward to wrap R functions as REST endpoints.
Moving the UI to React decouples the presentation from the computation. The frontend team doesn’t need to touch R, and the R code doesn’t need to worry about rendering.
The stateless API design also means there’s no database. Patient data is passed in the request body and never stored — important both for privacy and for keeping the system simple.
What We’d Do Differently
A few things to note if you’re building something similar:
- Cold start: R Plumber takes ~10 seconds to start, so the Nginx timeout is set to 30 seconds. This is fine for a VM that’s always running, but would be a problem on a serverless setup.
- Rate limiting: 2 requests/second is intentionally conservative. Cox model prediction is fast (~100ms), but we wanted to protect against accidental hammering.
- No auth: This is a public health tool — no login required. That’s a deliberate choice, not an oversight.
Video Demo
Below is a short clip comparing the original R Shiny prototype to the current production app.
The model, the logic, the clinical interpretation — all the same. What changed is reliability, speed, and the ability to reach clinicians anywhere.
Paper: Enhanced dynamic risk stratification of smoldering multiple myeloma — Nature Medicine, March 2026
Calculator: pangeamodels.org
